CTS TURBO Rear Subframe Bushing Insert Kit: MK5/MK6/MK7/8P/8V/MK2/MK3 Audi

Code: CTS-HW-216


In Stock

Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.


CTS Turbo is proud to announce our new billet rear subframe bushing insert kit (applications listed below).  This kit is designed to eliminate the large factory tolerances at the subframe mounting points.  These subframe bushings centrally locate the rear subframe and have been known to eliminate fender rubbing issues due to shifted subframes even on the newest of factory cars. Wheel alignment is recommended after install.

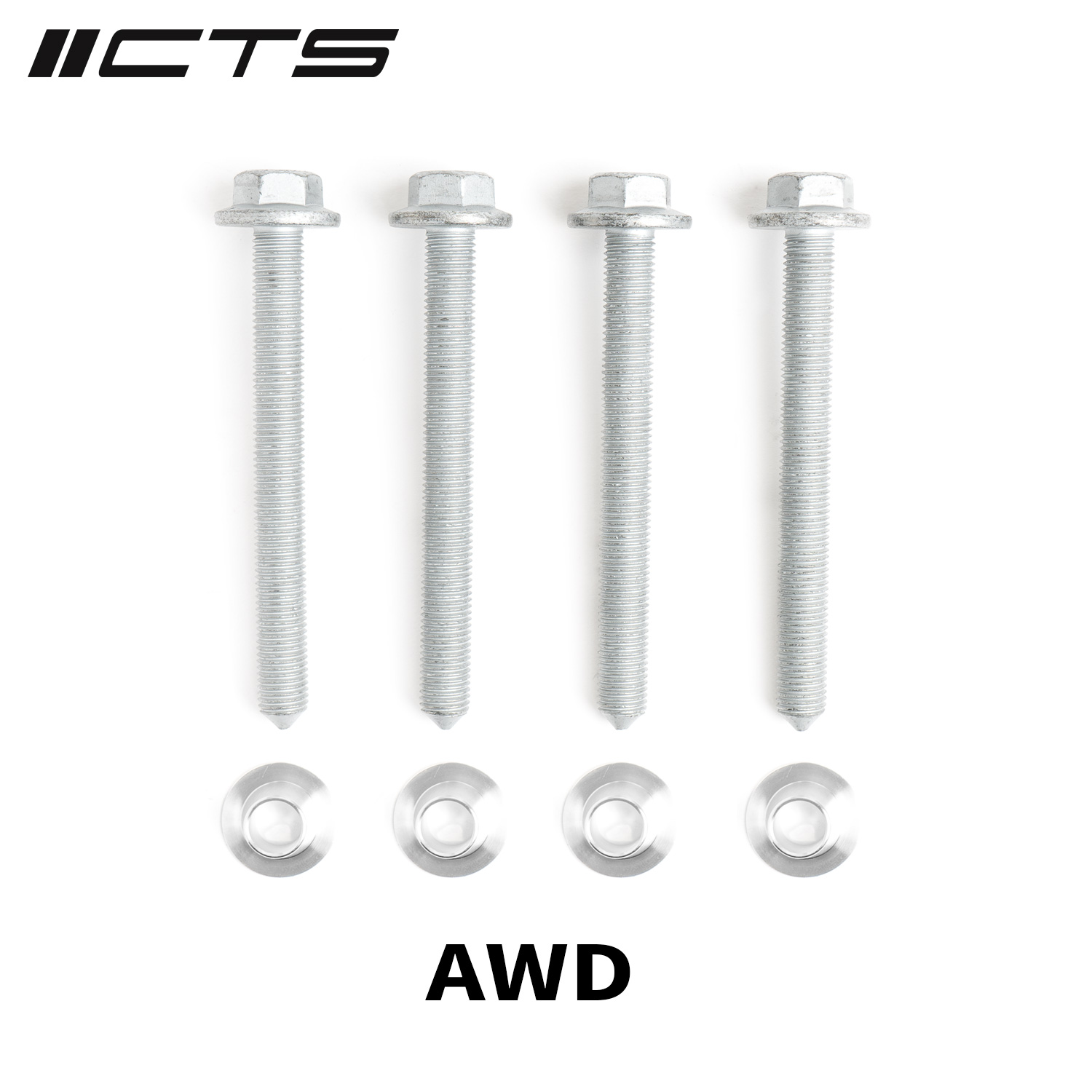

NOTE: On AWD vehicles, only the conical locating bushing inserts are used for subframe during the install; the outside “cup” shims are not used.
  • Made in Canada from T6061 Billet aluminum
  • Direct fit for factory subframe
  • Reinforces and centers rear subframe for precise handling
  • Can be used with CTS-HW-257 on MQB vehicles

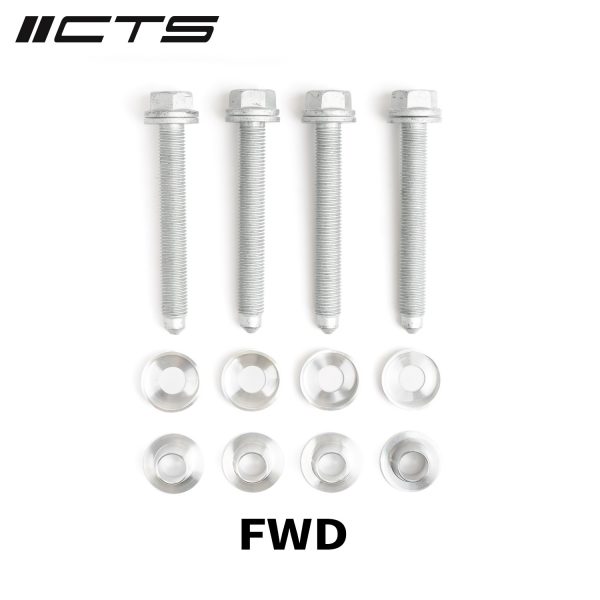

Kit Components:
  • 4 x Upper Insert – locating bushing
  • 4 x Lower Insert – cup shim (FWD models only)
  • 4 x OE Bolts

Application List:

  • MK5 GTI/GLI/R32/Jetta/Rabbit (independent rear suspension only)
  • MK6 GTI/GLI/Golf R/Jetta/Golf (independent rear suspension only)
  • MK7+ GTI/Golf/Golf R
  • 8P/8V+ Audi A3/S3/RS3
  • MK2/MK3 Audi TT/TTS/TTRS

Additional information

Weight 2 lbs
Dimensions 6 × 6 × 6 in



Make Model Year Generation
AUDI A3 2005 - 2013 8P
AUDI TT 2008 - 2015 MK2
AUDI TTRS 2012 - 2013 MK2
AUDI TTS 2009 - 2015 MK2
VW GOLF 2006 - 2009 MK5
VW GOLF 2010 - 2014 MK6
VW GOLF 2015 - 2019 MK7
VW GOLF GTI 2006 - 2009 MK5
VW GOLF GTI 2010 - 2014 MK6
VW GOLF GTI 2015 - 2019 MK7
VW GOLF R 2012 - 2013 MK6
VW GOLF R32 2008 MK5
VW JETTA 2005 - 2008 MK5
VW JETTA 2011 - 2018 MK6
VW JETTA GLI 2005 - 2008 MK5
VW JETTA GLI 2012 - 2018 MK6
