IE Billet Press Fit Timing Belt Drive Gear For 06A/4 Bolt 1.8T Engines

Code: IEBEVA17

US$199.99

2 in stock

2 in stock

Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Description

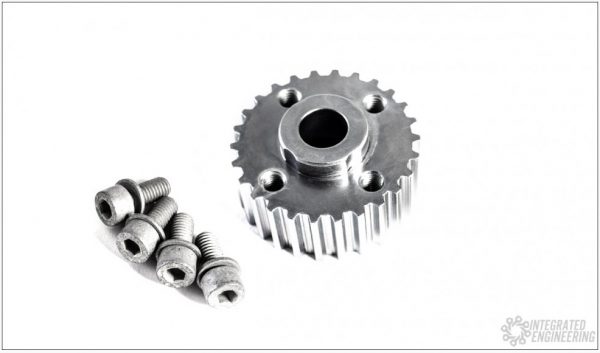

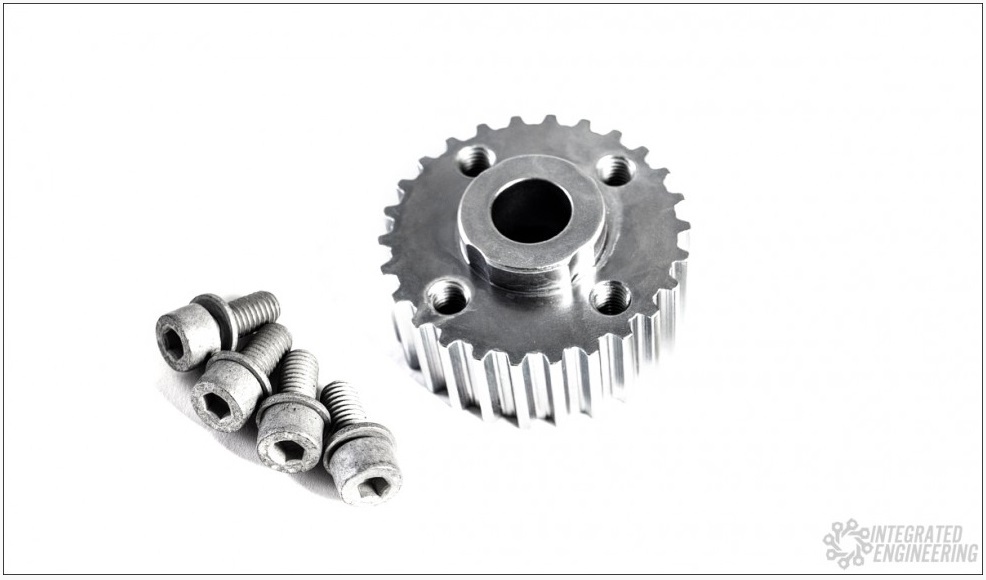

Eliminate the concern of shearing your 1.8T timing drive gear keyway once-and-for-all with this billet replacement.  The factory gears are notorious for coming loose in high RPM conditions, leading to the keyways completely breaking, causing timing belt failure. Along with that, we have seen failures from the powdered metal gears completely disintegrating from small cracks that develop as the bolt is torqued. As a result from these failures, valves bend and pistons become damaged. We offer dowel pin gear kits and ARP crank bolts to help this situation, but they do not eliminate the poorly constructed factory timing gear. With that in mind, we found ourselves back at the drawing board. We knew that there was a better solution for that problem; it would just take some serious work and testing to bring it to the market. With this product, we have completely redesigned the factory interface, removing the weak factory gear and loose-fitting keyway, replacing it with a solid steel gear with a press-fit interface.

IE gears start out as a solid block of steel and get precisely machined into the finished piece, with special attention taken to the area where the gear meets the crankshaft. Our billet replacement offers a press-fit, so the gear is no longer loose on the end of the crankshaft, eliminating any chance of the gear coming loose and shearing the keyway. We finish them with a bright zinc plated finish to prevent against corrosion.

These gears feature the 4-bolt damper interface, so they are a direct fit for all 06A 1.8T engines.

Features
Billet steel construction
Press-fit interference, eliminates chance of failure
4 bolt damper interface uses 06A 1.8T factory or aftermarket damper
Zinc plating to combat corrosion
Includes new damper bolts

Use this along with IE/ARP crank bolt for indestructible timing drive setup!

Additional information

Weight 3 lbs

Model

Generation

Make Model Year Generation
Make Model Year Generation
AUDI A4 2000 - 2001 B5
AUDI A4 2002 - 2005 B6
AUDI TT 2001 - 2006 8N
VW GOLF 2000 - 2006 MK4
VW JETTA 2000 - 2005 MK4
VW JETTA GLI 2000 - 2005 MK4
VW PASSAT 2000 - 2005 B5
