BFI – Stage 2 Torque Arm Insert – 09+

Code: EBFI783M5T09

US$40.00

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Description

Under hard acceleration, the pendulum mount (commonly referred to as the "dogbone" or by VW as the "torque arm") acts to limit rotational movement of the engine – The factory bushings do a satisfactory job, while limiting vibrations, but only during sedate driving conditions. When pushed hard those bushings flex creating a vauge feeling in the engine and gearbox, and adding to the dreaded "wheel hop" phenomenon.

Our pendulum mount torque arm insert fills the voids in the stock rubber bushing, making what was a soft rubber bushing with voids into what behaves like a solid mount. With the insert installed, you will notice that throttle response will feel better and your shifts will feel more crisp and defined, especially on manual transmission cars.

Designed In-house, these mounts are made to be the stiffest on the market made from the highest quality (98a) durometer polyurethane. Each insert is pressure injection molded to insure a consistent hardness throughout the mount for long life even under hard driving condtions.

Design. Implementation. Production.

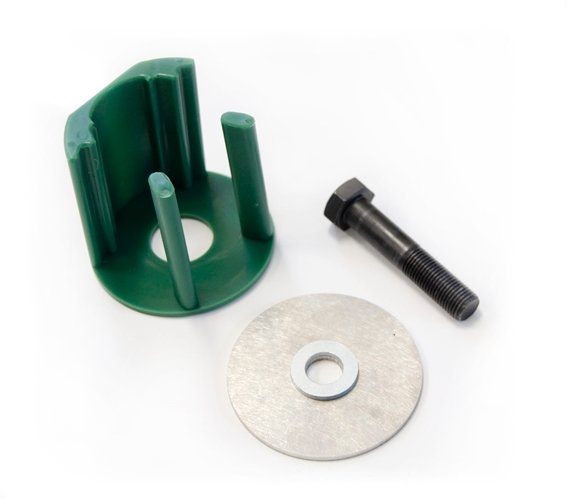

Each insert comes with one laser cut washer, one ring washer and a replacement bolt. Everything you need to replace the existing pendulum mount hardware.

Fits all 09+ Mk5 platform vehicles including GTI/GLI, Rabbit, Jetta 2.5, Jetta TDI, Tiguan, and Passat. As well as Audi TT (mkII) and A3

Additional information

Weight 5 lbs
Dimensions 10 × 10 × 10 in

Model

Generation

Make Model Year Generation
Make Model Year Generation
AUDI A3 2006 - 2013 8P
VW BEETLE 2012 - 2018 MK2
VW CC 2009 - 2017 MK1
VW EOS 2007 - 2016 MK1
VW GOLF 2010 - 2014 MK6
VW GOLF GTI 2010 - 2014 MK6
VW GOLF R 2012 - 2013 MK6
VW GOLF R 2015 - 2018 MK7/7.5
VW JETTA 2011 - 2018 MK6
VW JETTA GLI 2011 - 2018 MK6
VW PASSAT 2006 - 2010 B6
