CTS A3 (8P) 2.0T Direct Fit FMIC Kit

Code: CTS-20T-A3-DF

Original price was: US$799.99.Current price is: US$679.99.

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Description

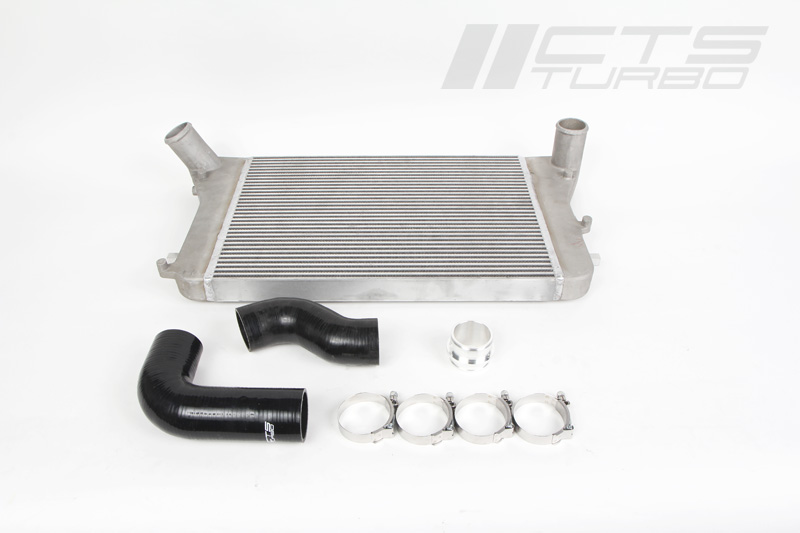

The CTS A3 2.0T Direct Fit FMIC Kit is designed as a drop in replacement for the OEM front mounted intercooler (FMIC).  That means you can install this kit without any trimming or modification of the bumper.  The OEM FMIC is adequate for stock boost levels, however once boost levels are increased by way of ECU upgrades/chipping the OEM FMIC struggles to keep the charged air temperatures in check.  Higher charged air temperatures can result in boost cut and timing pull, both reducing the amount of power your vehicle produces.

The CTS direct fit FMIC uses a high efficiency bar and plate intercooler core, which aids in reducing pressure drop.  Reducing pressure drop means that your turbo will not have to work as hard to make a given level of boost.  If your turbo makes 30psi of boost pressure in the turbocharger, and your intercooler has a 10psi pressure drop then the boost measured by your ECU would be (30psi – 10psi) = 20psi.  With an efficient FMIC like the CTS direct fit FMIC your turbo does not have to work as hard to reach desired boost levels.  This is beneficial in two ways, the turbo life expectancy is increased due to more efficient operation, and boost leaving the turbocharger is cooler and more dense resulting in more power to the ground.

Product Details:

– Efficient bar and plate construction
– Low pressure drop
– Maintains factory mounting points
– No trimming of bumper or crash supports
– Rated for power levels in excess of 600HP
– Core dimensions: 23.00 Length x 2.00″ Tall x 16.5″ Height
– Cast aluminium high efficiency end tanks

Will not fit 2014+ Audi A3/S3 (8V)

Additional information

Weight 40 lbs
Dimensions 39 × 9 × 21 in

Model

Generation

Make Model Year Generation
Make Model Year Generation
AUDI A3 2004 - 2013 8P
