V-band turbine discharge flange – 3 5/8″

Code: CTS-074-3036


In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

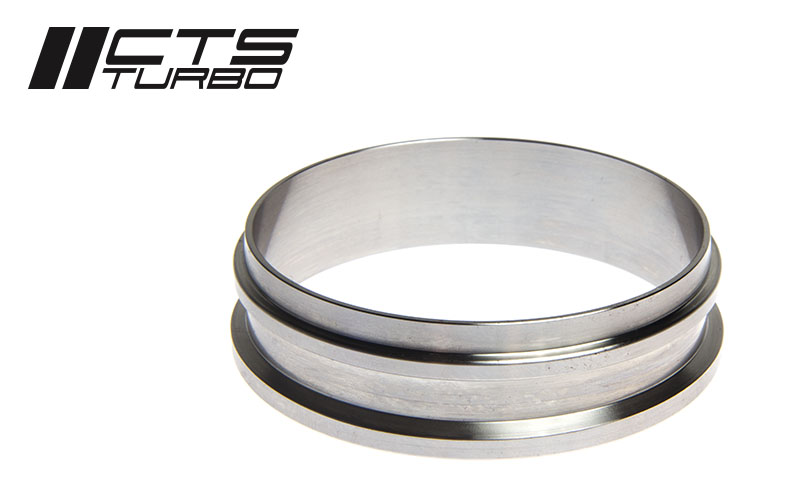

CTS Turbo 3-5/8″ Turbine Discharge Flange for Precision T4 V-band housings

• V-Band style flange provides a uniform, positive seal
• Manufactured from stainless steel
• Fits most T4 based turbochargers with a 3 5/8″ turbine discharge
• Allows for use with either a 3.0″ or 3.5″ downpipe

Weld Side Outer Diameter: 91mm
Weld Side Inner Diameter: 81mm

Flange Side Outer Diameter: 92mm
Flange Side Inner Diameter: 77mm

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
