CTS Turbo Rear Subframe Inserts for Tesla Model 3 2017-2020

Code: CTS-SUS-0104

Original price was: US$159.99.Current price is: US$135.99.

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Description

Introducing our new billet subframe inserts for Tesla Model 3’s. Made from high-quality T6061-T6 aluminum, these subframe inserts are a significant upgrade from the factory rubber bushings. The black anodized finish adds a sleek, keeping that OEM look with better performance.

These subframe bushings are designed to improve lateral stability during cornering, resulting in a more confident and responsive driving experience. The precision machining ensures there is no movement between the subframe and chassis, improving the overall rigidity of the vehicle.

One of the most significant benefits of these subframe inserts is the increased grip and stability in the rear of the car. This improved stability will give you better control in high-performance driving situations, and a more comfortable ride during regular commutes.

While there is a slight increase in noise, it is minimal and will not negatively impact your driving experience. Overall, our billet subframe inserts for Tesla Model 3’s are an excellent investment for anyone looking to upgrade the performance and handling.

Features:

  • Machined 6061-T6
  • Black anodized
  • Improved handling and stability
  • Easy install

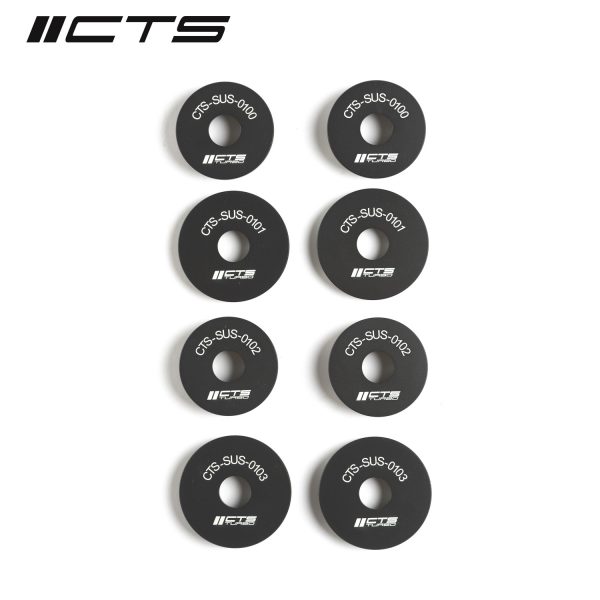

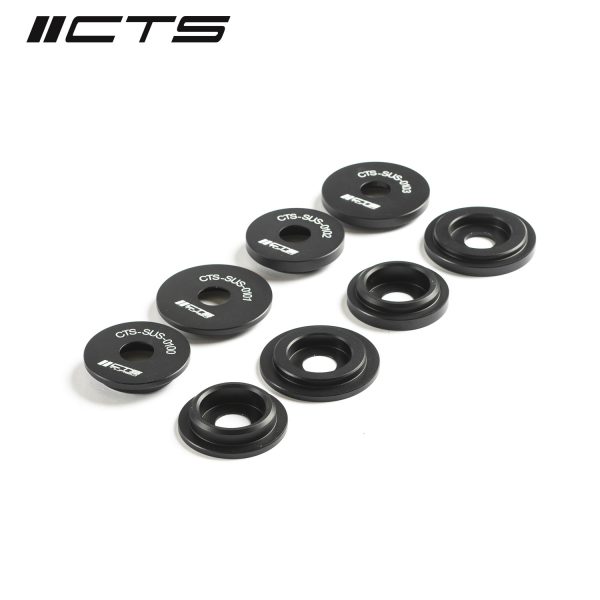

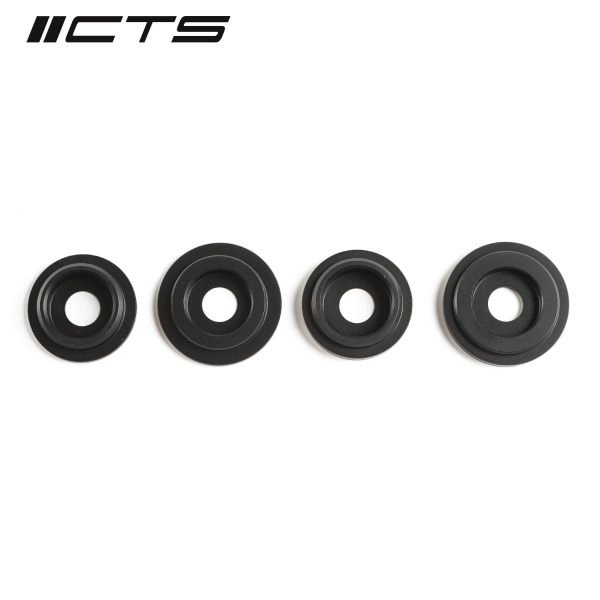

Included:

  • CTS-SUS-0100 (Front upper) x 2
  • CTS-SUS-0101 (Front lower) x 2
  • CTS-SUS-0102 (Rear upper) x 2
  • CTS-SUS-0103 (Rear lower) x 2

**Does not fit Model 3’s produced after 2020**

Installation:

To install the subframe inserts, it’s recommended to remove one bolt at a time and allow the subframe to lower down. This installation process can be completed within approximately one hour by a skilled mechanic who is knowledgeable with the vehicle’s platform.

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in

Reviews

There are no reviews yet

Be the first to review “CTS Turbo Rear Subframe Inserts for Tesla Model 3 2017-2020”

Model

Generation

Make Model Year Generation
Make Model Year Generation
TESLA Model 3 2017 - 2020 LR RWD
TESLA Model 3 2017 - 2020 SR/SR+ RWD
TESLA Model 3 Performance/Long Range 2018 - 2020 AWD
TESLA Model Y 2020 - 2022 LR
